The H20P is a comprehensive automotive active safety product integrating satellite positioning, video monitoring, and active safety features. Designed for fleet monitoring, management, driving safety, and standardized driving behavior, it incorporate...
Real-time monitoring
Fleet safety
Cloud dashboard
GPS tracking
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.
- Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
- Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
- When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Operating System | Linux |
|---|
| RAM | Embedded 1Gb DDR3L |
|---|
| ROM | 128Mb SPI NOR Flash |
|---|
| Storage | Single TF card slot (supports up to 512GB) |
|---|
| Camera 1 | MIPI, 1080P/25fps |
|---|
| Camera 2 | MIPI, 1080P/25fps, with light sensor and IR switching |
|---|
| Network & Connectivity | FPC antenna for 4G, built-in positioning antenna for GPS/BD, and built-in FPC antenna for WIFI (IEEE802 b/g/n) |
|---|

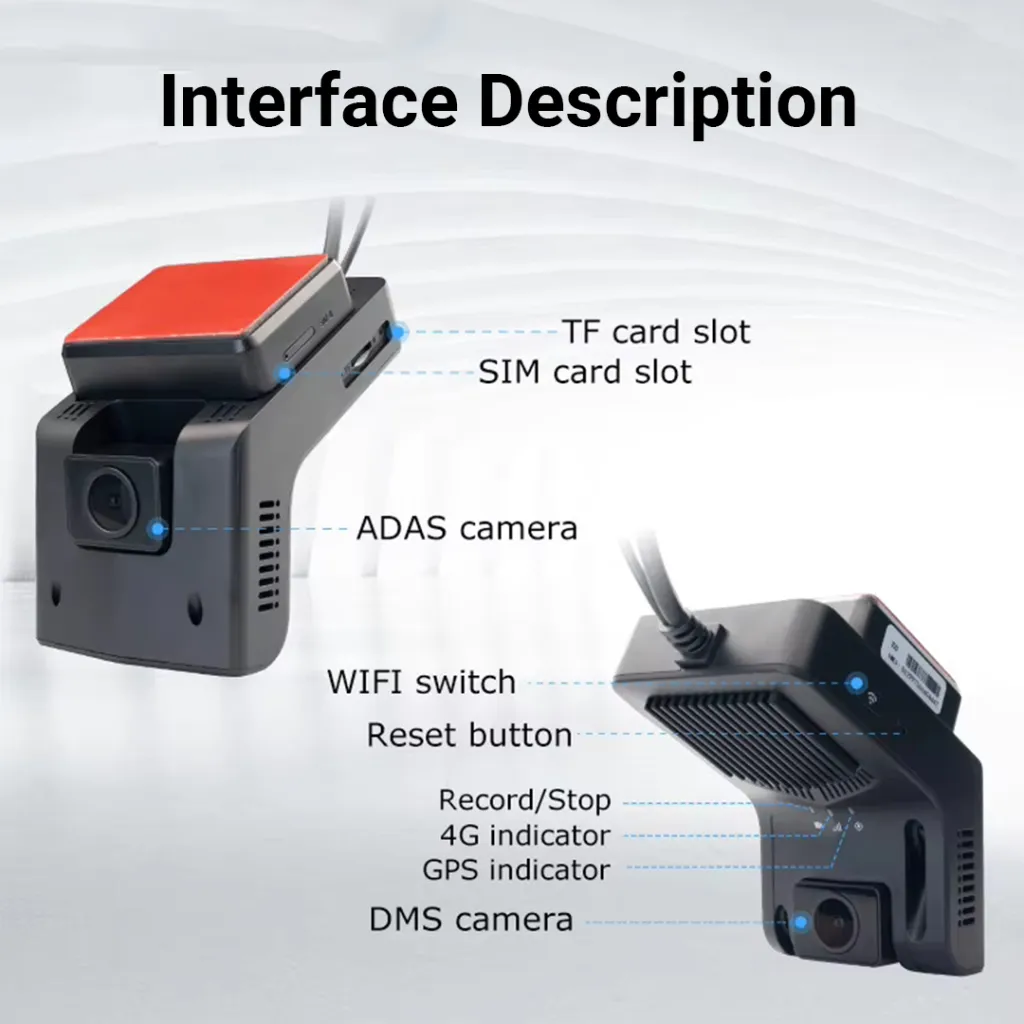

| Interface | Speaker (1.1W/80), onboard MIC, and 1 channel SOS button |
|---|
| Video System | PAL/NTSC |
|---|
| Compression Standard | H.264 |
|---|
| Image Resolution Ratio | 1080p@30fps |
|---|
| Playback Quality | 720P/1080P |
|---|
| Audio Compression | G.711A, AAC |
|---|
| Power Input | DC 9V-36V |
|---|
| Typical Power Consumption | 2W (Excluding Peripherals) |
|---|
| Working Temperature | -20-70℃ |
|---|
| Measure | 115x66x70mm |
|---|
Key features
- Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.
- Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
- Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
- When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
